SE-CMF Coriolis Mass Flow Meter

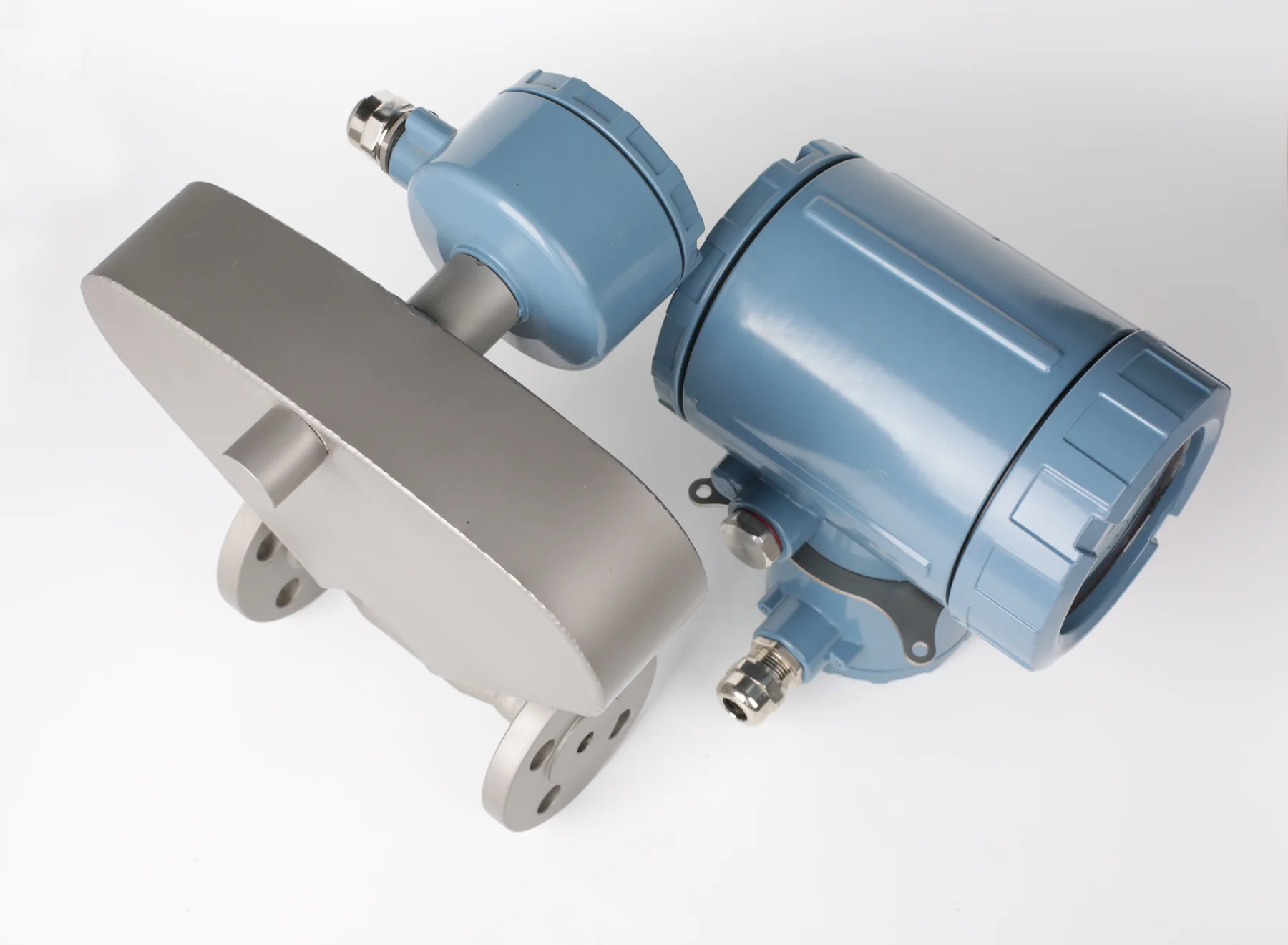

Mass Flow Meter Structural Detail
Mass Flow Meter Field Installation
SE-CMF Series

Industrial Coriolis Mass Flow Meter

The SE-CMF Series delivers high-precision 0.1%/0.15% FS accuracy for demanding industrial environments. Direct mass measurement eliminates the need for temperature, pressure, or density compensation. Available with 316L stainless steel, Hastelloy, or titanium alloy wetted parts for compatibility with corrosive media.

Ex db ib IIC T3-T6 Gb Ex ib tb IIIC T85°C-T200°C Db 316L SS / Hastelloy / Titanium HART / RS485 / Modbus DN1.5 – DN250
Request Quote View Specs
Technical Data

Complete Specifications

All data measured and calibrated in accordance with international standards with NIST-traceable calibration.

PARAMETERVALUE
Accuracy (Mass Flow)0.1% / 0.15% FS
Accuracy (Density)±0.0005 g/cm³
Repeatability±0.05% of rate
Turndown Ratio10:1 (standard)
Nominal DiameterDN1.5 – DN250
Process ConnectionFlanged (ANSI 150–2500 / DIN PN16–PN420) / Thread / Tri-Clamp
Wetted Materials316L Stainless Steel / Hastelloy / Titanium Alloy
Max Pressure420 bar (6,100 psi)
Process Temperature-200°C to +245°C
Ambient Temperature-40°C to +60°C
Output Signals4–20 mA HART, RS485 Modbus, Pulse, Frequency
Communication ProtocolsHART / RS485 / Modbus
Enclosure RatingIP67 / IP68 (submersible)
Explosion-Proof RatingEx db IIC T3-T6 Gb / Ex tb IIIC T85°C-T200°C Db
Power Supply20–140 VDC (24 VDC nominal)
Enclosure MaterialAluminum alloy / Stainless steel (optional)
CalibrationNIST-traceable, multi-point standard
How It Works

Coriolis Measurement Principle

VIBRATION (DRIVE MODE) Inlet side Phase shift ∝ mass flow
01

Tube Oscillation

The measuring tubes are driven to oscillate at their natural frequency (typically 80–120 Hz) by a driver coil, similar to a tuning fork.

02

Coriolis Force Generation

When fluid flows through the vibrating tubes, Coriolis forces are induced, causing a measurable phase shift between the inlet and outlet sides.

03

Phase Shift Measurement

Dual electromagnetic sensors detect the time delay (phase difference), which is directly proportional to the mass flow rate — independent of fluid properties.

04

Multi-Variable Output

The DSP calculates mass flow, density, and temperature simultaneously. Density is derived from tube resonant frequency; temperature from an integrated RTD.

Configuration Options

Choose the Right Configuration

Select from multiple material, communication, safety and size options to match your exact process requirements.

Contact Materials

  • 316L SS — Standard for general industrial & sanitary processes. Excellent corrosion resistance for food, pharma & water.
  • Hastelloy C-276 — For highly corrosive chemicals, acids & chlorides. Resists pitting and stress-corrosion cracking.
  • Titanium Alloy — Lightweight and highly corrosion-resistant. Ideal for seawater, brine & aggressive alkali environments.

Communication Protocols

  • HART — Industry-standard 4–20 mA with digital overlay. Compatible with existing DCS and PLC analog input cards.
  • RS485 Modbus — Multi-drop network for up to 32 devices. Supports RTU and ASCII modes with CRC check.
  • Modbus TCP — Ethernet-based communication for high-speed data acquisition and remote monitoring.
  • Other protocols (Profibus PA, Foundation Fieldbus) available on request.

Explosion-Proof & Safety

  • Ex db ib IIC T3–T6 Gb — Flameproof enclosure for Zone 1/2 gas groups. Covers hydrogen, acetylene, ethylene and propane.
  • Ex ib tb IIIC T85°C–T200°C Db — Dust ignition protection for combustible dust atmospheres in Zone 21/22.
  • IP66/IP68 — Dust-tight and submersible enclosure. Suitable for outdoor, washdown and flood-prone installations.
  • Certificate copies provided with every hazardous-area shipment.

Size & Connections

  • DN1.5–DN6 — Micro-flow series for laboratory, dosing and additive injection (threaded connections).
  • DN10–DN50 — Standard industrial range. Flanged (ANSI/DIN) or Tri-Clamp sanitary connections.
  • DN80–DN250 — Large pipeline series for main process lines, custody transfer and bulk flow.
  • Custom flange ratings from ANSI 150 to 2500 / DIN PN16 to PN420.
Why Choose SE-CMF

Built for Industrial Excellence

Every detail engineered for accuracy, reliability, and long-term value.

High Precision Measurement

0.1%/0.15% FS accuracy ensures accurate data collection in industrial processes. Reliable readings across the full flow range for critical applications.

Multiple Material Options

316L stainless steel, Hastelloy, and titanium alloy wetted parts adapt to various corrosive and harsh media. Choose the right material for your process.

Excellent Explosion-Proof Performance

Ex db ib IIC T3-T6 Gb / Ex ib tb IIIC T85°C-T200°C Db certified. Suitable for dangerous industrial environments such as petrochemical and energy fields.

Multi-Protocol Communication

Compatible with HART, RS485, and Modbus protocols, making it easy to integrate with industrial control systems, DCS, PLC, and SCADA networks.

Stable & Low Maintenance

Stable operation with low maintenance cost and long service life. No moving parts design reduces overall operation cost for customers over the product lifecycle.

Wide Size Range DN1.5–DN250

From micro flow to large pipeline applications, covering DN1.5 through DN250 with flanged, threaded, and Tri-Clamp connection options available.

Series Comparison

Choose Your Series

Each series is optimized for specific operating conditions. Compare features below to find the right variant for your process.

Feature Standard High-Temp Sanitary Ex-Proof
Accuracy0.1% FS0.1% FS0.15% FS0.1% FS
Process Temperature–40°C to +180°C–196°C to +350°C–40°C to +150°C–40°C to +200°C
Wetted Materials316L SS316L SS / Hastelloy316L SS (Ra ≤0.8µm)316L SS / Hastelloy / Titanium
Diameter RangeDN6 – DN250DN15 – DN200DN10 – DN100DN1.5 – DN250
Max Pressure250 bar420 bar160 bar (Tri-Clamp)420 bar
Hazardous AreaNon-classifiedZone 2 (optional)Non-classifiedZone 1/2 (Ex db ib IIC)
Enclosure RatingIP65IP66IP66 (washdown)IP66/IP68
Output ProtocolsHART / RS485HART / RS485 / ModbusHART / RS485HART / RS485 / Modbus
SIL RatingN/ASIL 2 capableN/ASIL 2 / SIL 3
Typical ApplicationGeneral process, water treatment, chemical dosingCryogenic LNG, hot oils, steam, high-temp chemicalsFood & beverage, dairy, pharmaceutical, CIP/SIPOil & gas, refinery, petrochemical, mining
Model Selector

Standard Model Range

Select the model that matches your process requirements. Custom configurations available upon request.

ModelDN (mm)Flow Range (t/h)AccuracyConnection
SE-CMF0015150 – 0.060.5% FSThread / Flange
SE-CMF00330 – 0.120.5% FSThread / Flange
SE-CMF00440 – 0.240.5% FSThread / Flange
SE-CMF00660 – 0.80.15% FSThread / Flange
SE-CMF0010100 – 1.50.15% FSThread / Flange
SE-CMF015150 – 30.15% FSThread / Flange
SE-CMF020200 – 70.15% FSThread / Flange
SE-CMF032320 – 210.15% FSThread / Flange
SE-CMF040400 – 360.15% FSThread / Flange
SE-CMF050500 – 600.15% FSThread / Flange
SE-CMF080800 – 1200.15% FSThread / Flange
SE-CMF1001000 – 2100.15% FSThread / Flange
SE-CMF1501500 – 3500.15% FSThread / Flange
SE-CMF2002000 – 7500.15% FSThread / Flange
SE-CMF2502500 – 12000.15% FSThread / Flange
Complete Reference

Unified Specification Table

Comprehensive parameter reference covering all available configurations, materials, and options for the SE-CMF Series.

PARAMETERAVAILABLE OPTIONS / RANGE
Measurement PrincipleCoriolis (direct mass measurement)
Accuracy (Mass Flow)0.1%/0.15% FS (Standard / High-Temp / Ex-Proof) | 0.5% FS (Sanitary / Large DN <6)
Accuracy (Density)±0.0005 g/cm³ (standard) | ±0.001 g/cm³ (high-temp)
Repeatability±0.05% of rate
Turndown Ratio10:1 (standard) | 20:1 (optional)
Nominal DiameterDN1.5 / DN3 / DN6 / DN10 / DN15 / DN25 / DN40 / DN50 / DN80 / DN100 / DN150 / DN200 / DN250
Flow Range (water)0.006 t/h (DN1.5) – 1,200 t/h (DN250)
Process ConnectionsFlanged (ANSI 150–2500 / DIN PN16–PN420) | Thread (NPT/BSP) | Tri-Clamp (sanitary)
Wetted Materials316L Stainless Steel | Hastelloy C-276 | Titanium Alloy (TA2/TC4)
Max Working Pressure420 bar (optional)
Process TemperatureStandard: -50°C to +180°C | High-Temp: -200°C to +245°C | Sanitary: -40°C to +150°C
Ambient Temperature-40°C to +60°C (electronics)
Output Signals4–20 mA (active/passive) + HART | RS485 Modbus RTU / Modbus TCP | Pulse / Frequency
Additional ProtocolsProfibus PA, Foundation Fieldbus, EtherNet/IP (available on request)
Explosion-Proof (Gas)Ex db IIC T6/T3 Gb (Zone 1/2)
Explosion-Proof (Dust)Ex tb IIIC T185°C/T200°C Db (Zone 2/22)
Enclosure ProtectionIP67 (standard) | IP68 (submersible, optional)
Enclosure MaterialAluminum alloy (standard) | Stainless steel 304/316 (optional)
Functional SafetyUp to SIL 2 (SIL 3 capable via redundant configuration)
Power Supply20–140 VDC (24 VDC nominal) | Optional: 80–264 VAC with integrated PSU
DisplayLCD 128*64, backlit, 4-line process readout
Electrical ConnectionM20 × 1.5 cable gland | ½" NPT conduit | Optional: explosion-proof cable entry
Surface Finish (Sanitary)Ra ≤0.8 µm (wetted) | Ra ≤0.4 µm (optional)
CalibrationNIST-traceable, multi-point (5–21 points)
Compliance StandardsISO 9001, ATEX Directive 2014/34/EU
